Series 60 DDEC V Troubleshooting – Section 81.2 Injector Harness Wiring Schematic

Email This Page

Section 81.2
Injector Harness Wiring Schematic

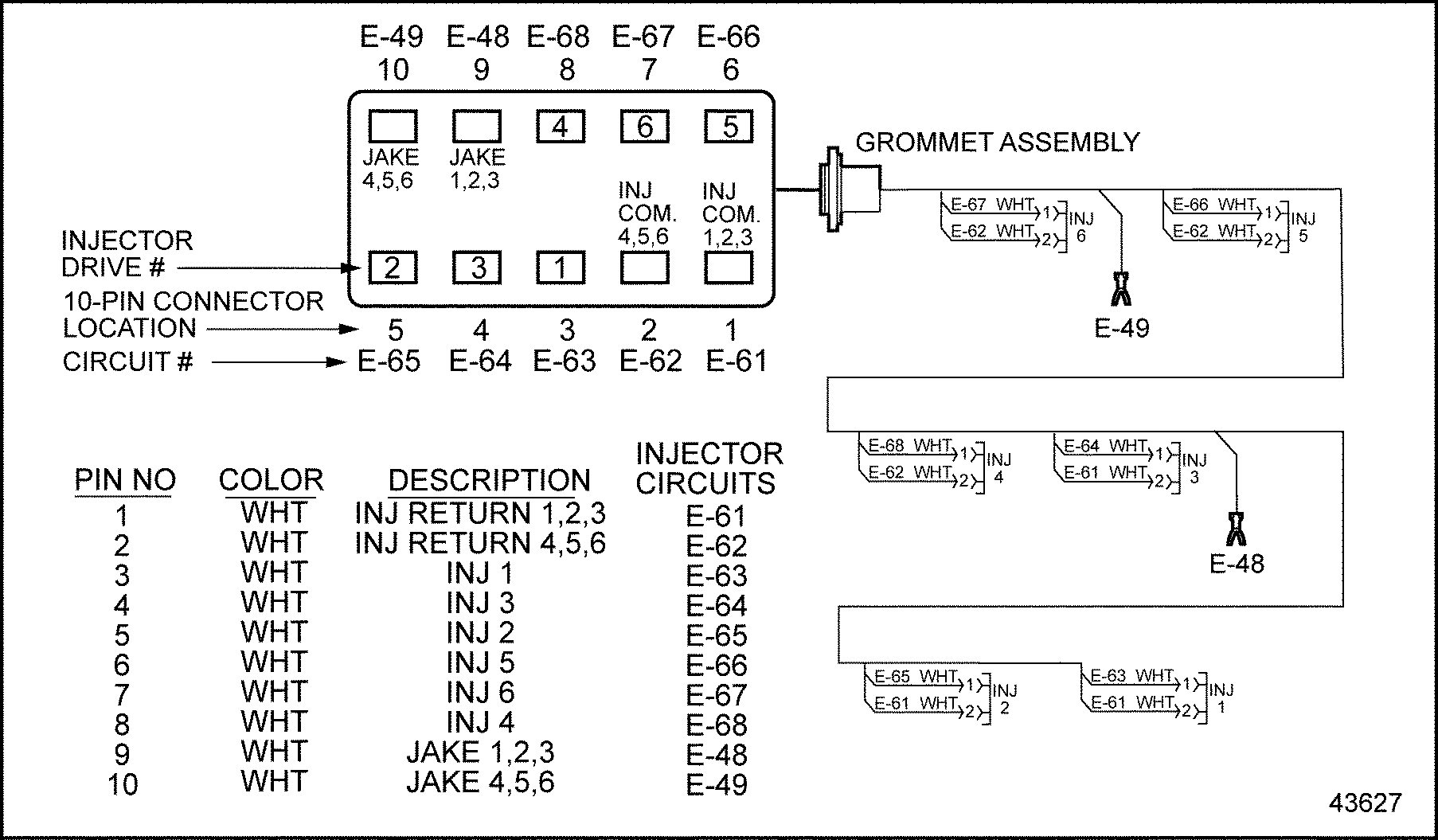

See Figure "Series 60 Injector Harness with Jake Brake" for an overview of the Series 60 Injector Harness with Jake Brake.‪

Click to see this graphic in a separate window

Figure 1. Series 60 Injector Harness with Jake Brake

Series 60 DDEC V Troubleshooting Guide - 6SE570
